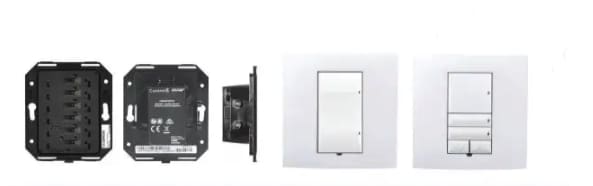

Control4 Square Wireless Switch

Control4 Square Dual Load Wireless Switch combines two relays and a configurable keypad for on/off control of up to two loads. The keypad can be configured with two to seven buttons using five different buttons sizes for a total of 38 possible configurations.

Details:

• Power Requirements: Hz 220VAC-240VAC +/-10%, 50/60 Hz
• Power Consumption: 950mW
• Humidity: 5% to 95% non-condensing
• Control Communications: ZigBee, IEEE 802.15.4, 2.4 GHz, 15-channel spread spectrum radio

Features:

• Provides independent control of up to two different loads.
• Wireless communication and standard wiring provide easy installation in new construction and retrofit environments.
• Compatible with a variety of load types including incandescent, halogen, electronic low-voltage (solid-state) transformers, magnetic (iron core) low-voltage transformers, fluorescents, compact fluorescents, LEDs, and motors.
• Continuously measures the energy being used by the attached load.
• Backlit button engraving with programmable color control for easy readability regardless of the time of day or light level.
• Programmable RGB LEDs provide status feedback for lighting and other devices in the system.
• Ambient light sensor automatically adjusts backlight and status LED brightness depending on the light level in the room.
• Installs in the standard square (UK/China-style) single-gang wall box.
