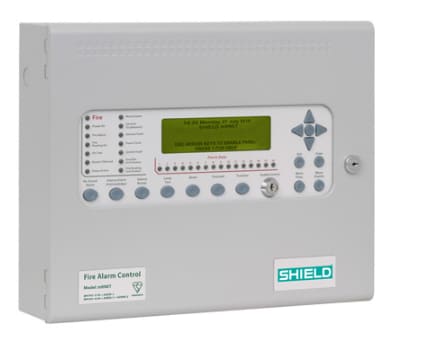

Analog Control Panel 4

Analog control panel is infiNET and have a versatile range of open protocol fire alarm control panels compatible with existing infiNET fire alarmpanel technology.
Available with one or two detection loops capable of hosting up to 126 devices. Microprocessor based electronics to provide a flexible control system with high reliability and integrity.
Suitable for all small to medium sized fire detection systems, infiNET control panels can be expanded and networked to become part of much larger system if the need arises, therefore providing a future proof solution for any installation.

Specification:

Colour - lid & box: BS 00 A 05 grey - fine texture
Display: 8 lines of 40 characters graphic LCD
Mains voltage supply: 110 or 230V AC 50 or 60 Hz
Mains supply fuse: 1.6A 250V
Power supply DC rating: 24V 3 Amps
Aux 24V supply: Fused at 500 milliamps
Maximum Battery size: 9Ah 12V (2 per panel) (non-networked)
Fault contact rating: 30V DC 1 Amp
Fire contact rating: 30V DC 1 Amp
Alarm contact rating: 30V DC 1 Amp
Sounder output rating: Fused at 1 Amp each
Detection loop: 400 milliamp output
Serial expansion port: Serial RS485
PC port: Serial RS232
