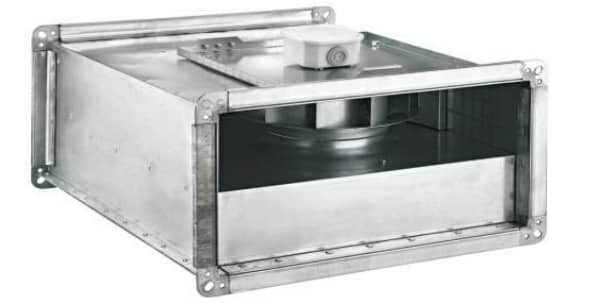

AC Rectangular in Line Duct Fans BDKF 50-25
Supplied by:
Meaptashi
AC Rectangular in Line Duct Fans BDKF 50-25 is developed and manufactured for high performance, trouble-free, and direct-to-duct operations.
Dimensions:
- A: 250
- B: 500
- C: 565
- D: 520
- E: 270
- F: 550
- G: 300
Power(W): 180
Current(A): 0,8
Capacitor(μF): 6
Sound Pressure Level(dB(A)): 78
Specifications
| Manufacturer: | Bahcivan (BVN) |
| Model: | BDKF 50-25 |
| Country of origin: | Turkey |
| Speed Control | Optional Controller |
| Insulation Class | Class B |
| Standard | EN 60335-1, EN 60335-2-80 |
| Frequency (Hz) | 50 |
| Applications | Residential, Commercial, Industrial |
| Material | Galvanized Sheet Steel |
| Voltage (V) | 230 |
| Features | High Performance, Trouble Free, Direct to Duct Operation |
| Power (Kw) | 130 |
| Air Flow (m3/h) | 1610 |
| Weight (Kg) | 15 |
| Speed (d/d) | 2635 |
