AC Rectangular in Line Duct Fans BDKF 100-50
Supplied by
Meaptashi
AC Rectangular in Line Duct Fans BDKF 100-50 is developed and manufactured for high performance, trouble-free, and direct-to-duct operations.

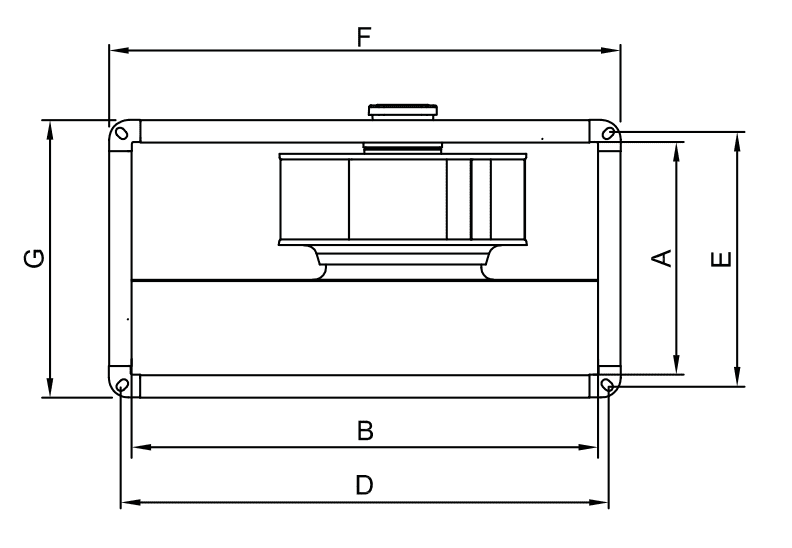

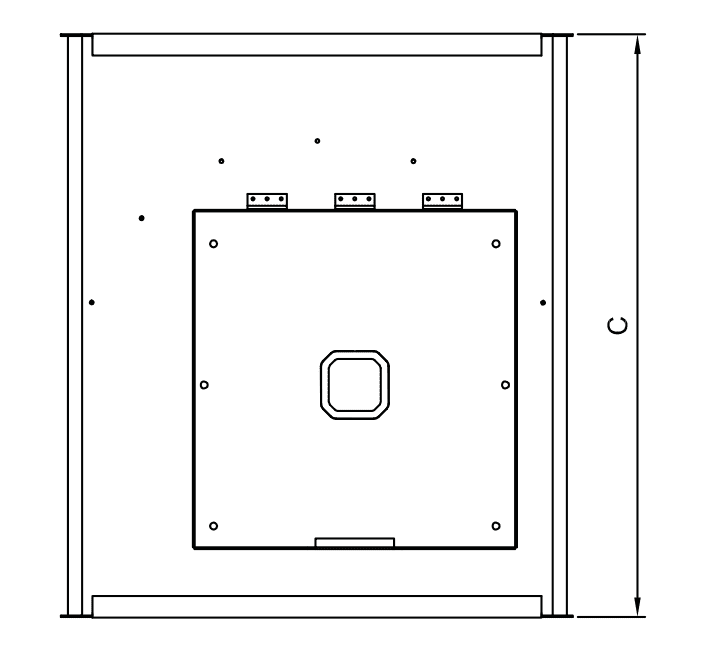

Dimensions:
- A: 500
- B: 1000
- C: 1050
- D: 1030
- E: 530
- F: 1060
- G: 560
Power(W): 1080
Current(A): 2,5
Sound Pressure Level(dB(A)): 80
Specifications
- Manufacturer:
- Bahcivan (BVN)
- Model:
- BDKF 100-50
- Country of origin:
- Turkey
- Speed Control
- Optional Controller
- Insulation Class
- Class B
- Standard
- EN 60335-1, EN 60335-2-80
- Frequency (Hz)
- 50
- Applications
- Residential, Commercial, Industrial
- Speed (d/d)
- 1350
- Voltage (V)
- 380
- Material
- Galvanized Sheet Steel
- Features
- High Performance, Trouble Free, Direct to Duct Operation
- Weight (Kg)
- 84
- Air Flow (m3/h)
- 9600
