Product Description

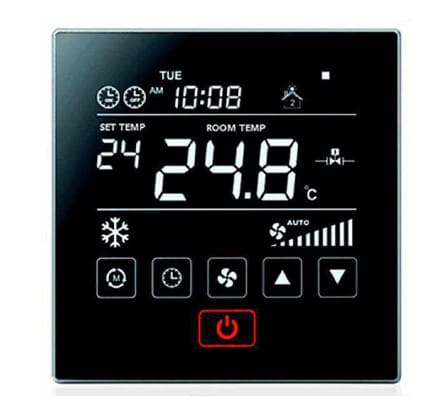

Modern design flush mounting fan coil room thermostat, used for individual control of temperature in commercial, industrial and residential buildings.

Application

• It is tailored for two-pipe and four-pipe fan coil units with two-wire electric valves. The device combines digital technology with a large LCD touchscreen display, which enables the single room controller to be used intuitively.
• Integrated 7-day time clock with 4-time programs.

Technical Data

• Enclosure: ABS, pure white
• Power supply: 90..265 V
• Power consumption: 0,9 VA (265 V ~)
• Connection electrical: terminal block max. 1,5 mm²

Function/Operation

Communication-section: 1..247
Factory default: 1
Address 0: broadcast address
Communication-Interface: RS485
Communication-Protocol: Modbus-RTU
Baud Rate: 4800 bps / 9600 bps / 19200 bps / 38400 bps (optional)
Factory default: 9600 bps
Parity: no parity / odd parity / straight parity (optional)
Factory default: no parity
Data: 8 bit
Stop: 2 bit
