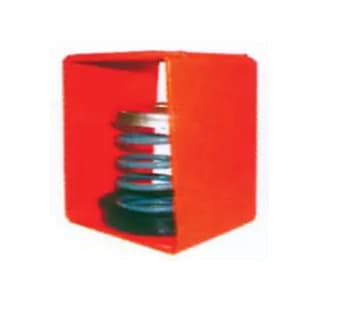

Spring Hanger HSD/OHSD-159-161

Supplied by: Meaptashi

Additional Information:

  • Spring Elements color-coded for easy field verification.
  • Load distribution steel washer.

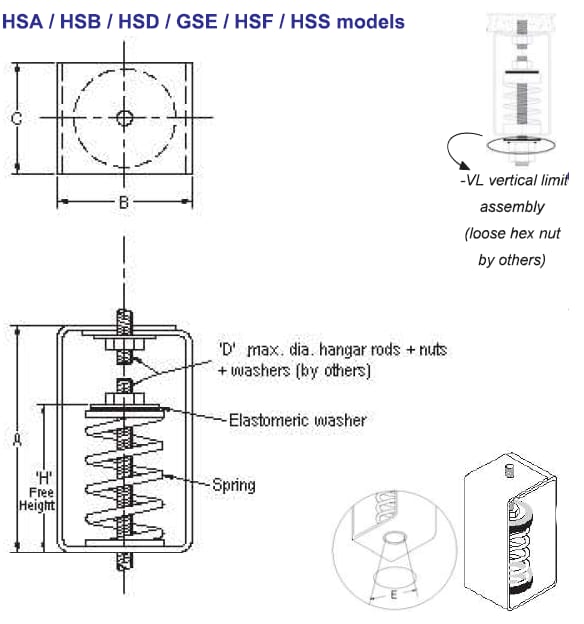

HSD Dimension:

  • A: 6-3/8"
  • B: 3-1/2"
  • C: 2-3/4"
  • D: 3/4"
  • H: 4-1/8"

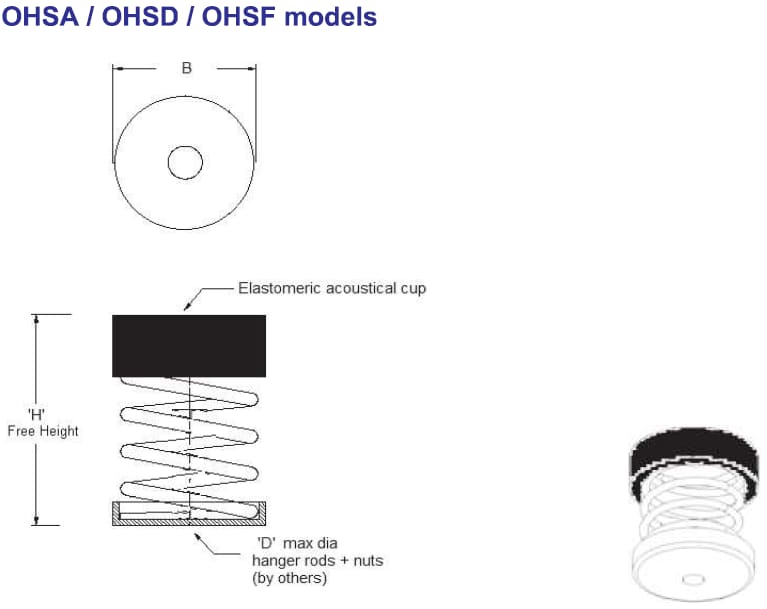

OHSD Dimension:

  • A: N/A
  • B: 2-7/8"
  • C: N/A
  • D: 5/8"
  • H: 4-1/8"

Specifications

DATA-SHEET
Manufacturer: Vimco-USA
Model: HSD/OHSD-159-161
Country of origin: United States
Features Powder Coated Steel Bracket
Deflection 1"
Load Range (lbs) 2083 to 2603
