Minigrid 10A 3 Pole Fan Isolation Switch Modules MD020
Fournis par
Scolmore International Limited

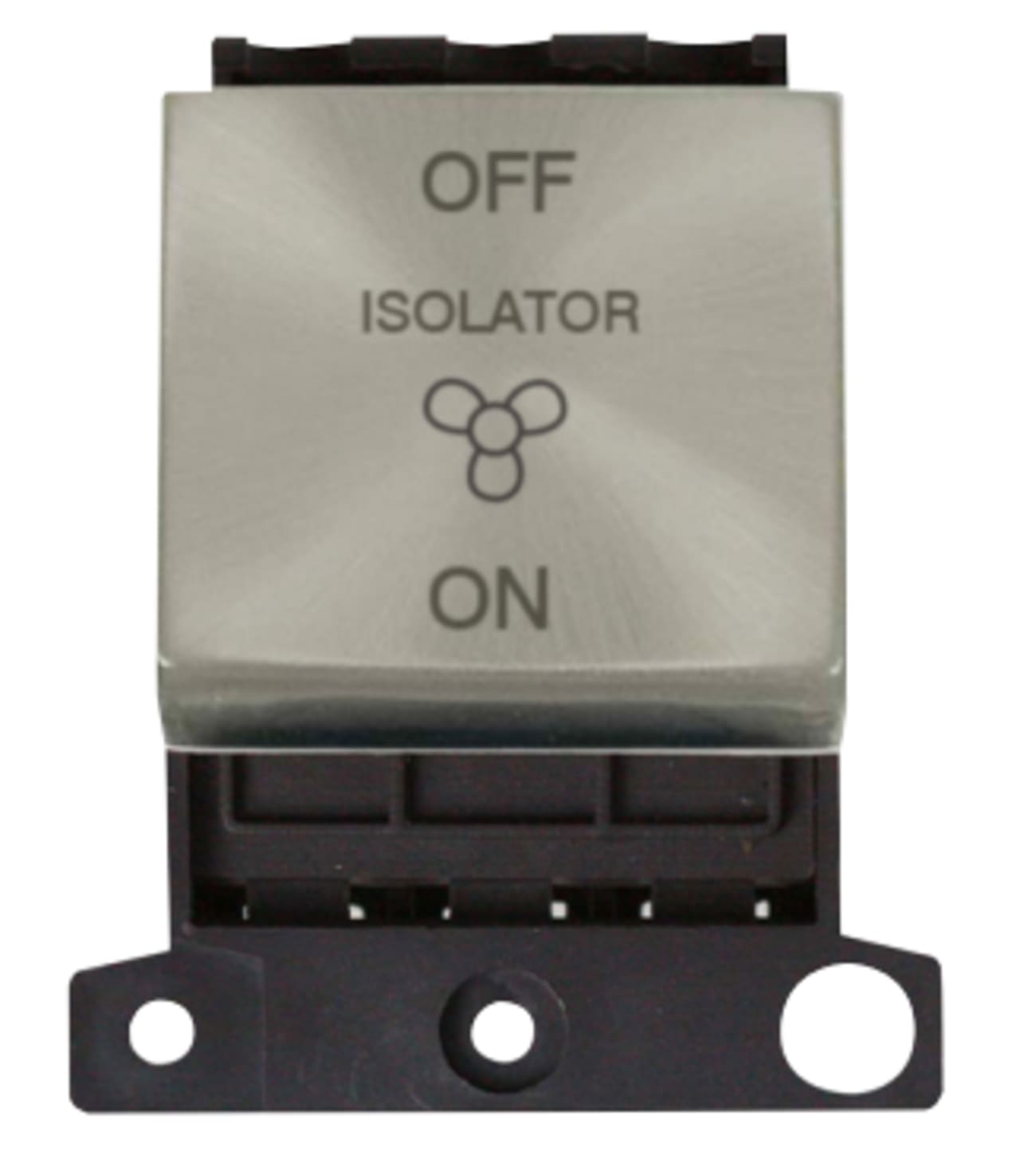

Minigrid 10A 3 Pole Fan Isolation Switch Modules MD020 are all easily and quickly exchanged or mounted onto unfurnished plates by means of a simple single screw fixing. MD020 has a 10A 3 pole fan isolation switch.
For additional details you can click on the link below:
scolmoredubai.com/products/minigrid/
Specifications
| Fabricant | Scolmore International Limited |
| maquette | MD020 |
| Pays d'origine | United Kingdom |
| Finishes | Pearl Nickel (PN), Antique Brass (AB), Polished Brass (BR), Satin Chrome (SC), Satin Brass (SB), Black Nickel (BN), Black (BK), Brushed Steel (BS), Polar White (PW), Polished Chrome (CH), Stainless Steel (SS), Click White (WH) |
| Features | Modular, Anti Microbial Certified |
| Back Box Depth | 16mm - 47mm |
| Standards | Modified ISO 22196, BS EN 60669-1:1999 + A1:2002 + A2:2008 |
| Material | Urea or Urea + Stainless Steel Cover, Brass, Steel & Yellow Passivated, Nylon |
| Warranty | 10yrs |
| Operational Temperature | -5 to +40 C |
| Terminal Size | 3.5mm |
| Voltage (V) | 240V~ 50Hz |
| IP Rating | 20 |
| Cable Size | 4 x 1.5mm², 2 x 2.5mm² |
| Current Rating | 10A |
