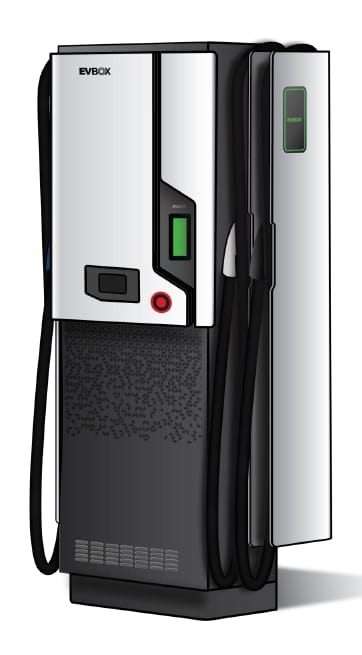

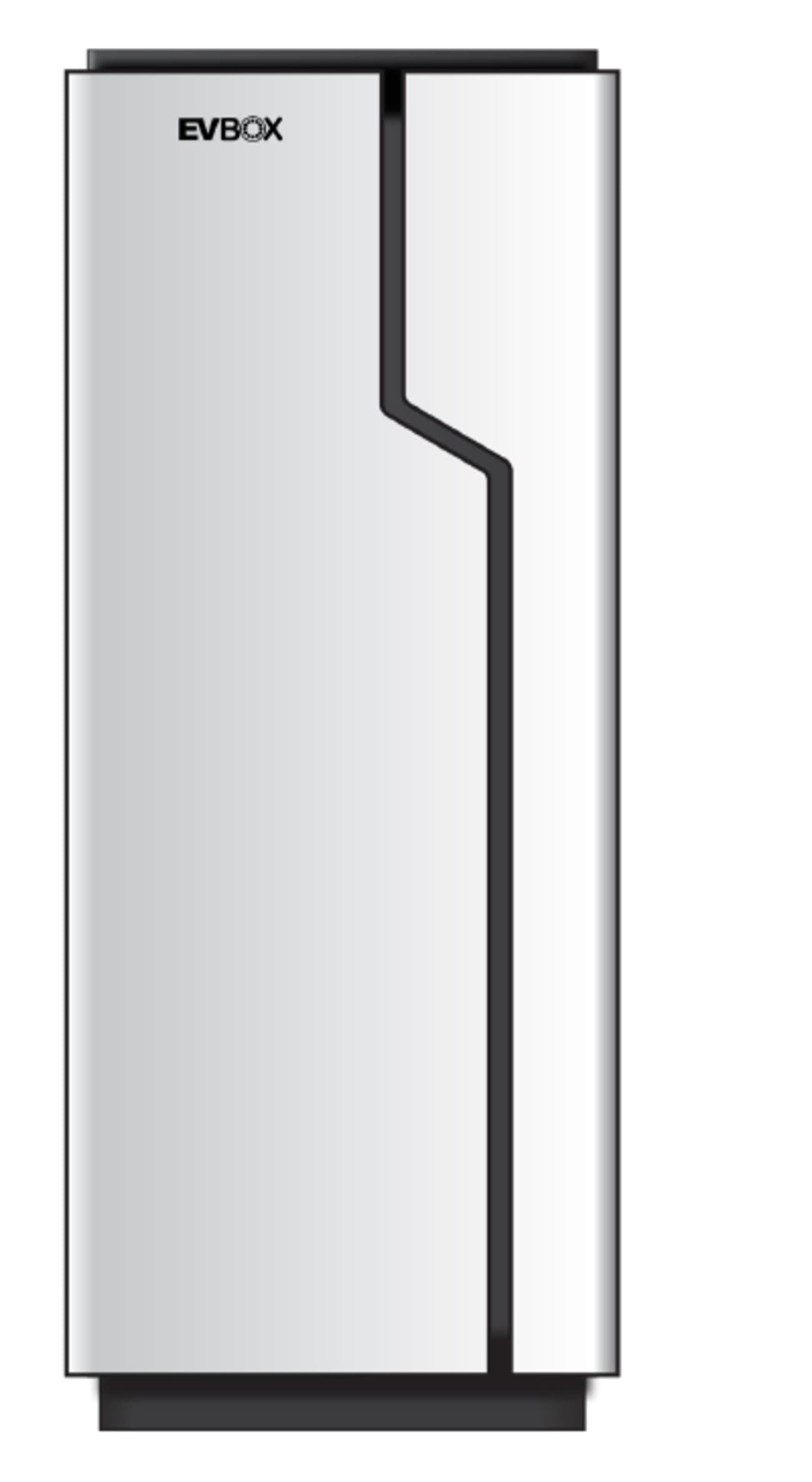

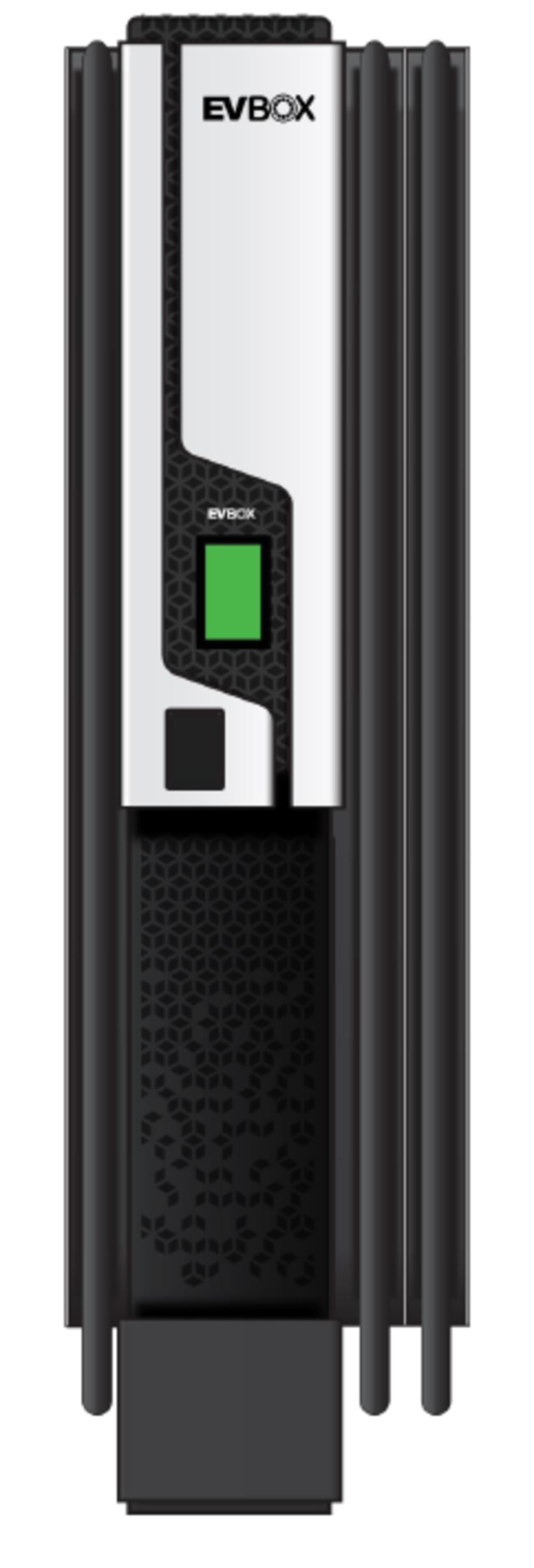

DC50 EVBox Quick Charger CCS
Fournis par
Cubic Art Technologies (CATEC)
DC50 EVBox Quick Charger is equipped with a powerful output between 50 - 350 kW, our fast chargers can charge up to 125 km in 30 mins (50 kW), and up to 400 km in just 15 mins (350 kW). It fits well into any type of space and is suitable for every use case around the world. With its unique auto-retractable cables, rugged high-impact housing, advanced heating system, and high-quality power electronic components, DC is fully reliable and made to last. DC offers ultra-fast charging with a powerful output of 175 kW up to 350 kW. Meanwhile, DC ensures an exceptional user experience thanks to its ergonomic auto-retractable cables, flexible architecture, and high-quality components.
Specifications
| Fabricant | Cubic Art Technologies (CATEC) |
| maquette | CCS |
| Pays d'origine | France |
| Maximum Output Current | DC: 120 A |
| Cooling Mounting | Forced Ventilation |
| Maximum Output Power | DC: 50kW |
| Certifications | CE, EN/IEC 61851-1, EN/IEC 61851-21, EN/IEC 61851-22, EN/IEC 61851-23, EN/IEC 62056, EN/IEC 62196-1, EN/IEC 62196-2, EN/IEC 62305-4, EN/IEC 60950, Low Voltage Directive 2014/35/EU, DIN 70121, ISO15118, CHAdeMO, EV/ZE-Ready, EDF HN 64-S-41, EDF HN 64-S-43, EDF HN 64-S-52, UTE C 12.101, UTE C15.100, UTE C15.103, UTE C15.106, UTE C15.107, EN/IEC 61000 (Class B), EN/IEC 61000-2-2, EN/IEC 61000-3-2, EN/IEC 61000-3-12, EN/IEC 61000-4-2, EN/IEC 61000-4-3, EN/IEC 61000-4-4 |
| Number of Plugs | 1 |
| Nominal AC Input Current | 77 A |
| Required Power Supply Capacity | 54 kVA |
| Frequency | 50 Hz |
| Enclosure Ratings | IP54, IK10 |
| Enclosure material | Galvanized Steel, Aluminum, Stainless Steel |
| Operating Humidity | 5% to 95% non-condensing |
| Output Voltage Range | DC; 50-500 V |
| Connections | CCS2 |
