AC Rectangular in Line Duct Fans BDKF 40-20A
Fournis par
Meaptashi
AC Rectangular in Line Duct Fans BDKF 40-20A is developed and manufactured for high performance, trouble-free, and direct-to-duct operations.

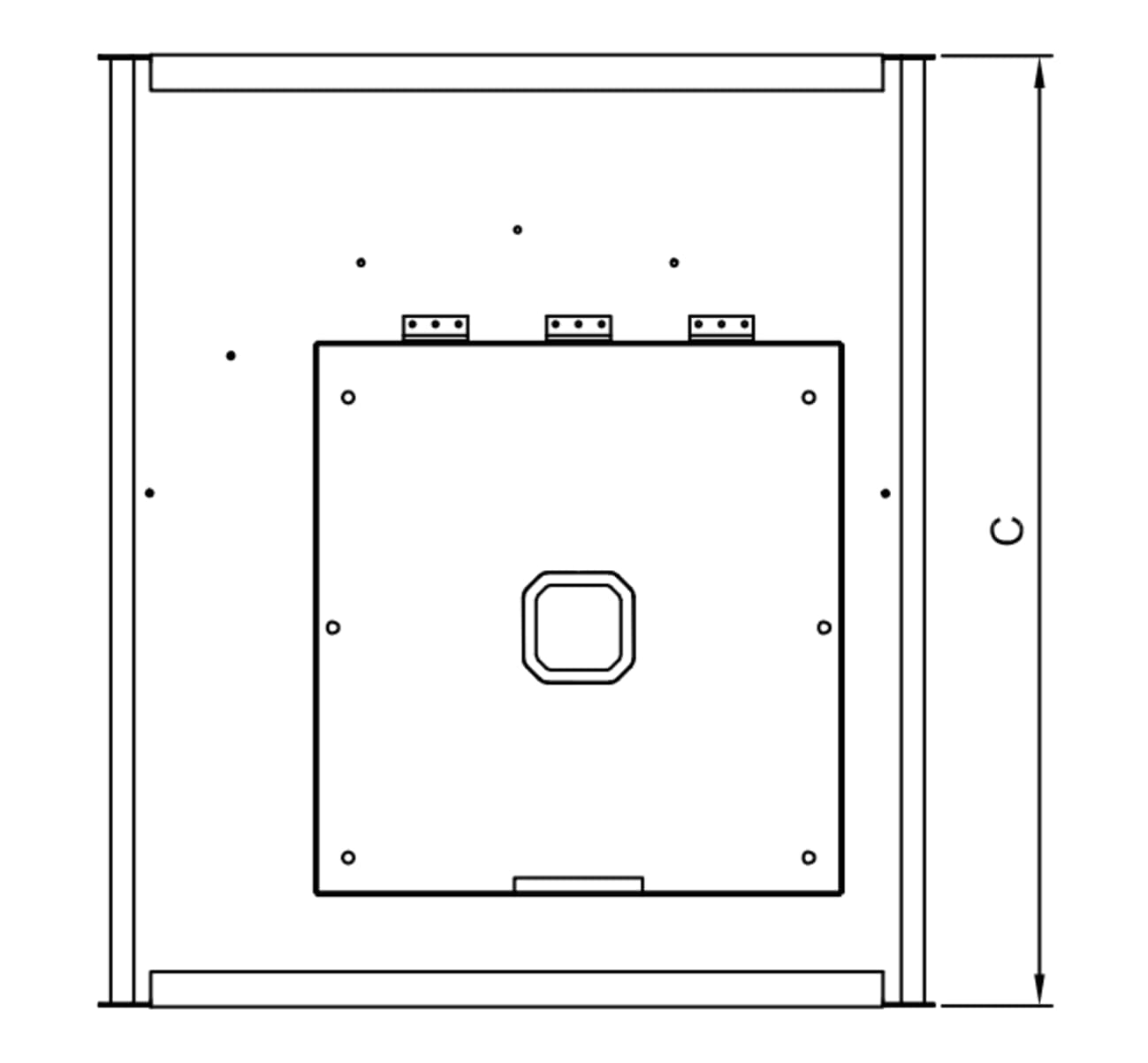

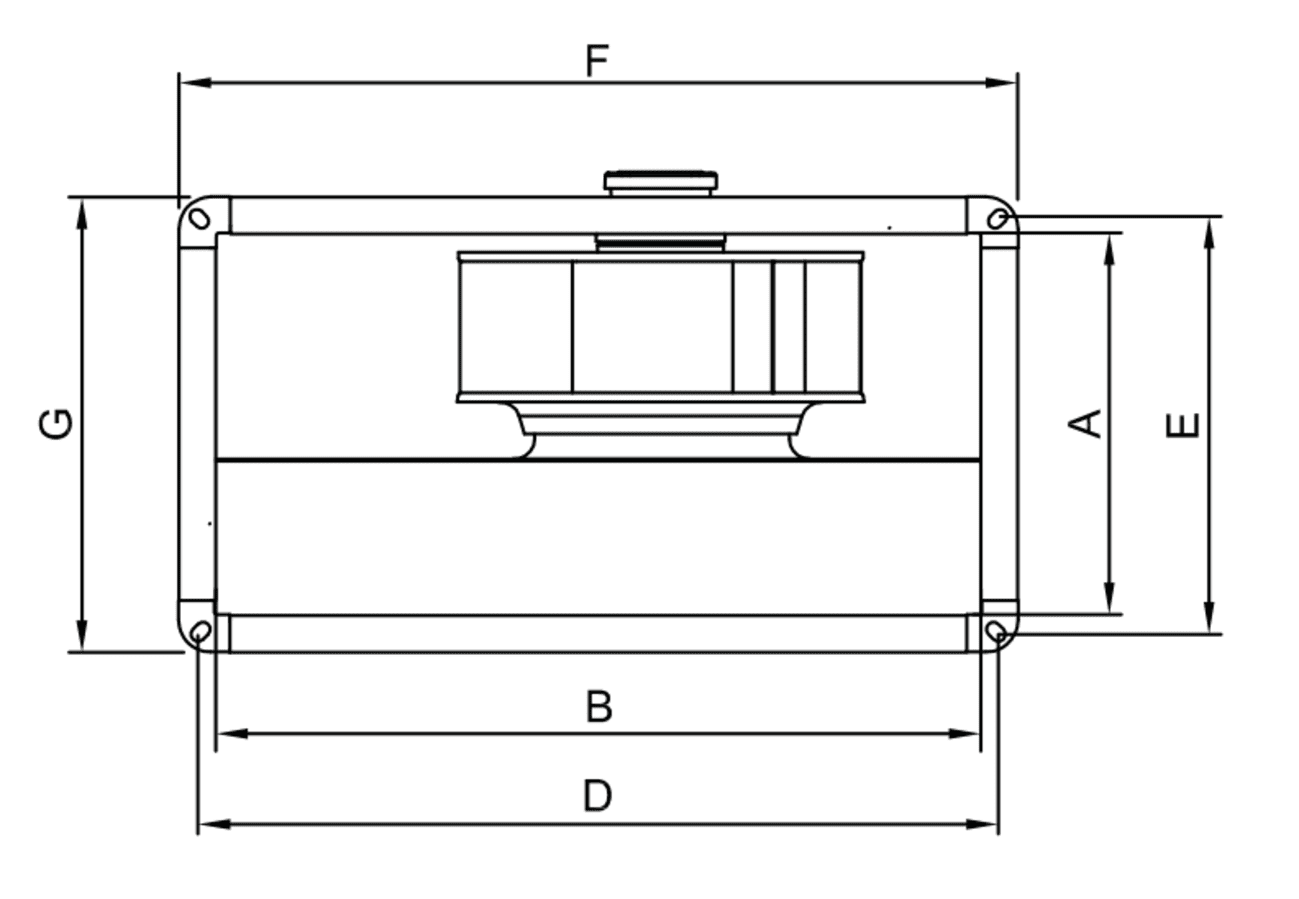

Dimensions:
- A: 200
- B: 400
- C: 500
- D: 420
- E: 220
- F: 450
- G: 250
Power(W): 104
Current(A): 0,47
Capacitor(μF): 4
Sound Pressure Level(dB(A)): 73
Specifications
| Fabricant | Bahcivan (BVN) |
| maquette | BDKF 40-20A |
| Pays d'origine | Turkey |
| Speed Control | Optional Controller |
| Insulation Class | Class B |
| Standard | EN 60335-1, EN 60335-2-80 |
| Frequency (Hz) | 50 |
| Applications | Residential, Commercial, Industrial |
| Material | Galvanized Sheet Steel |
| Voltage (V) | 230 |
| Features | High Performance, Trouble Free, Direct to Duct Operation |
| Air Flow (m3/h) | 950 |
| Weight (Kg) | 10, 5 |
| Speed (d/d) | 2645 |
