AC Rectangular in Line Duct Fans BDKF 100-50
Fournis par
Meaptashi

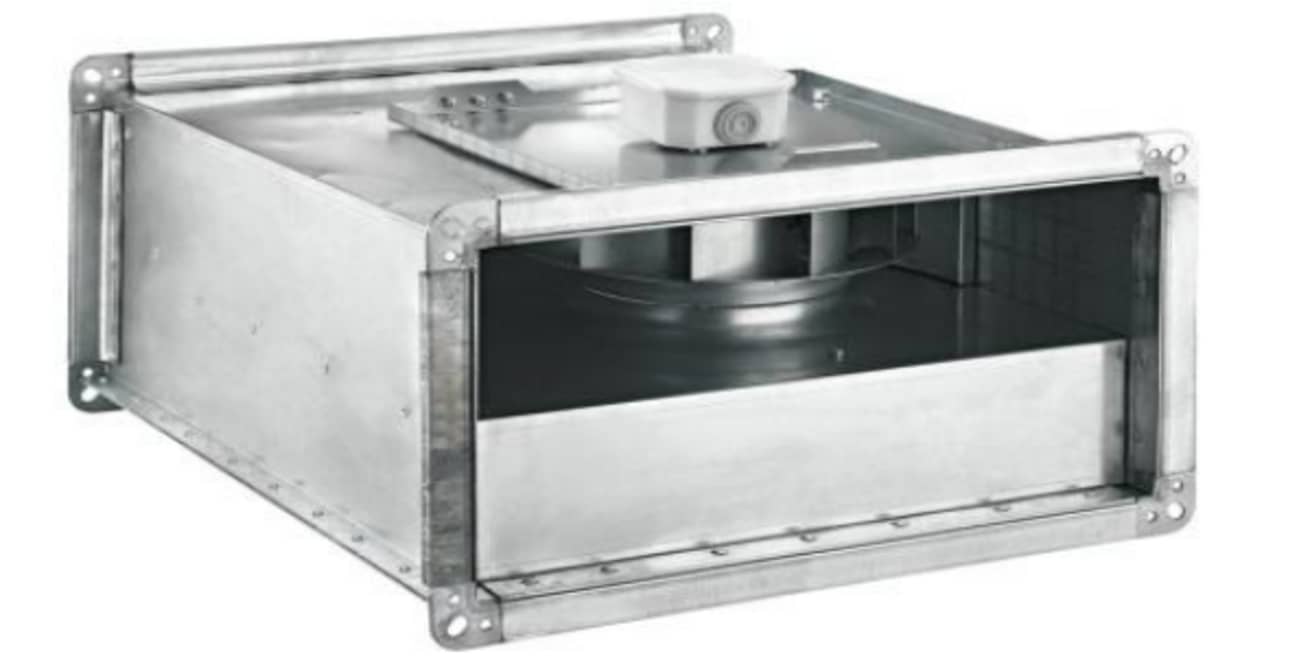

AC Rectangular in Line Duct Fans BDKF 100-50 is developed and manufactured for high performance, trouble-free, and direct-to-duct operations.

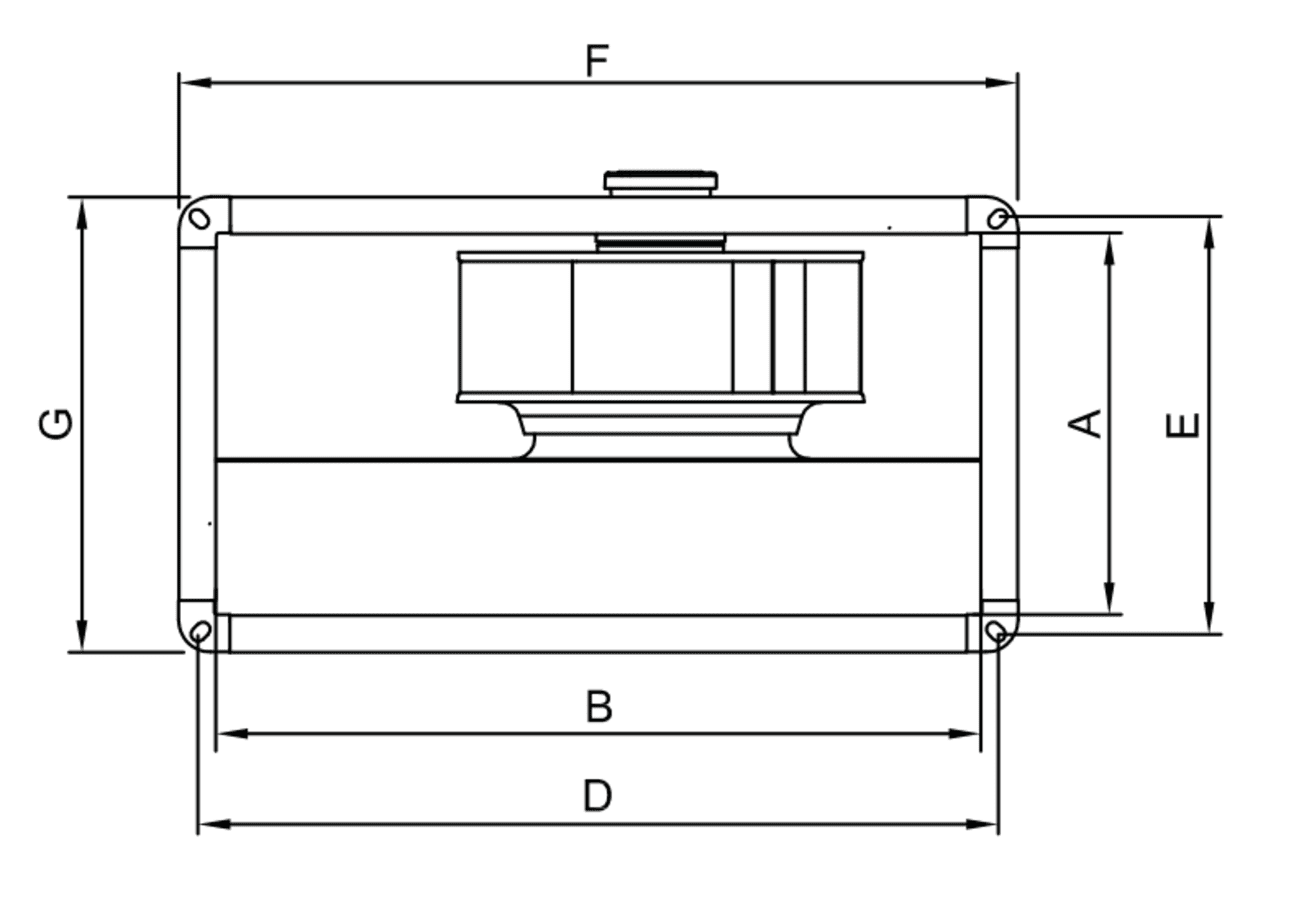

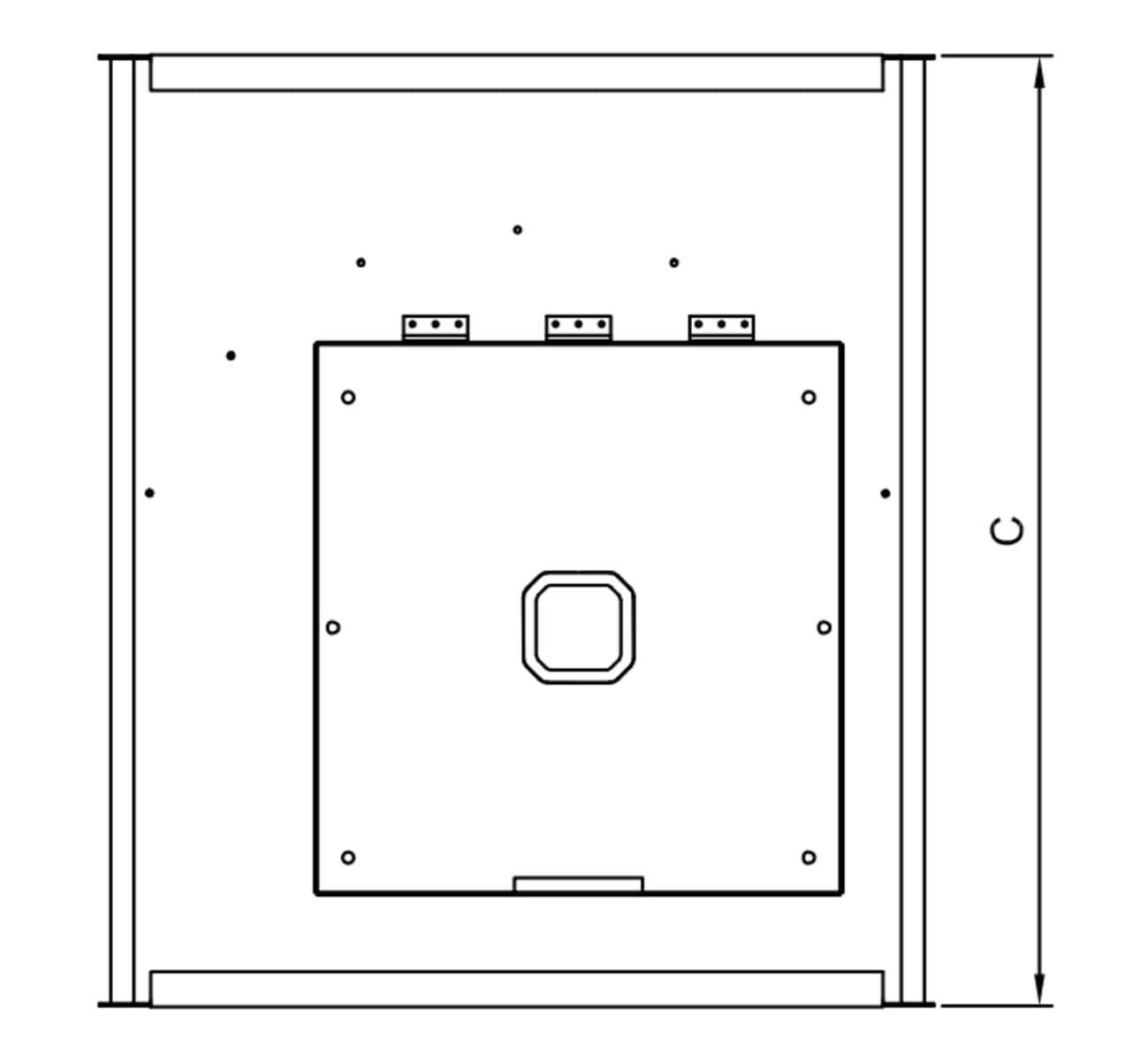

Dimensions:
- A: 500
- B: 1000
- C: 1050
- D: 1030
- E: 530
- F: 1060
- G: 560
Power(W): 1080
Current(A): 2,5
Sound Pressure Level(dB(A)): 80
Specifications
| Fabricant | Bahcivan (BVN) |
| maquette | BDKF 100-50 |
| Pays d'origine | Turkey |
| Speed Control | Optional Controller |
| Insulation Class | Class B |
| Standard | EN 60335-1, EN 60335-2-80 |
| Frequency (Hz) | 50 |
| Applications | Residential, Commercial, Industrial |
| Speed (d/d) | 1350 |
| Voltage (V) | 380 |
| Material | Galvanized Sheet Steel |
| Features | High Performance, Trouble Free, Direct to Duct Operation |
| Air Flow (m3/h) | 9600 |
| Weight (Kg) | 84 |
