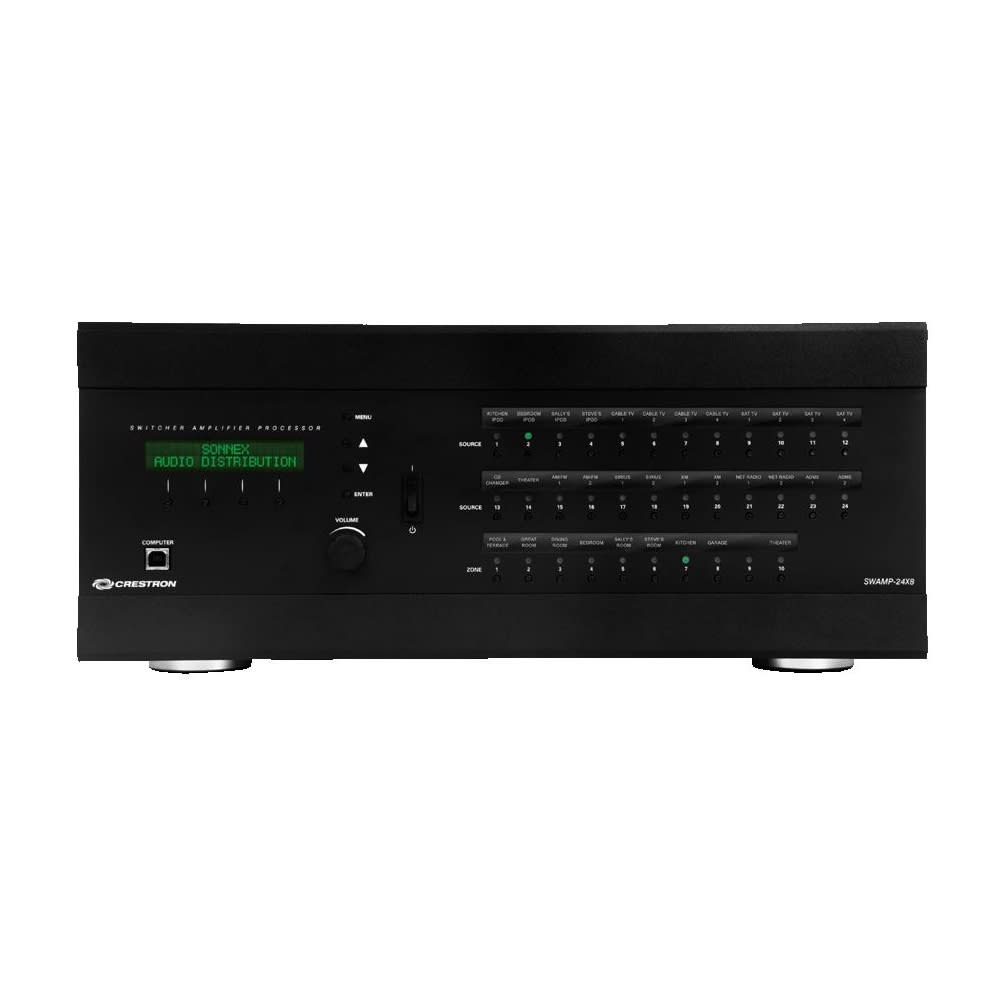

Sonnex® Multiroom Audio System

• Advanced multiroom audio distribution for homes and businesses
• Robust, high-efficiency audiophile grade amplification built in
• 140 Watts/Ch. @ 8 Ohms, 400 Watts/Ch. bridged
• Provides eight amplified stereo zone outputs
• Provides two additional SPDIF stereo zone outputs
• Additional line-level, SPDIF, and “CH” CAT5 balanced outputs available [2]
• 70/100 Volt “constant-voltage” output options available
• Output Bussing — enables linked operation of multiple adjacent zones
• Bridgeable outputs — Affords extra power for pools and other large areas
• Sonnex® Link — Provides a one-wire, plug-and-play interface to eight SWAMPE expanders up to 200 feet (61 meters) away [1,3]
• Sonnex Link over Fiber option enables distances up to 2000 feet (610 meters)
• Includes 12 unbalanced, 4 balanced/unbalanced, and 8 SPDIF inputs
• Allows audio return channel capability and extension of line-level and SPDIF signals using AUD-EXT Audio over CAT5 Extenders
• User adjustable volume, bass, treble, loudness, and selectable “tone profiles”
• Installer adjustable 5-band graphic or parametric EQ per zone
• Dynamic Range Control — Maintains even listening levels in both quiet and loud ambient environments
• Speaker Profiles — Allows easy upload of custom preset speaker settings
• Sonnex Speaker ProtectTM—Affords extra headroom while preventing component damage
• Individual zone power control and global standby
• Remote fault monitoring
